Pet Series

We are Parth Engineering Works, a leading Manufacturer of Injection Moulding Machine. We are pioneers in bringing you the most advanced plastic injection moulding machine. Having worked in this industry for more than 15 years we have the experience and the expertise to offer customised solutions to our esteemed clients. We are one of the most recommended Plastic Injection Moulding Machine Manufacturers owing to the high performance, excellent design and durability of our machines.

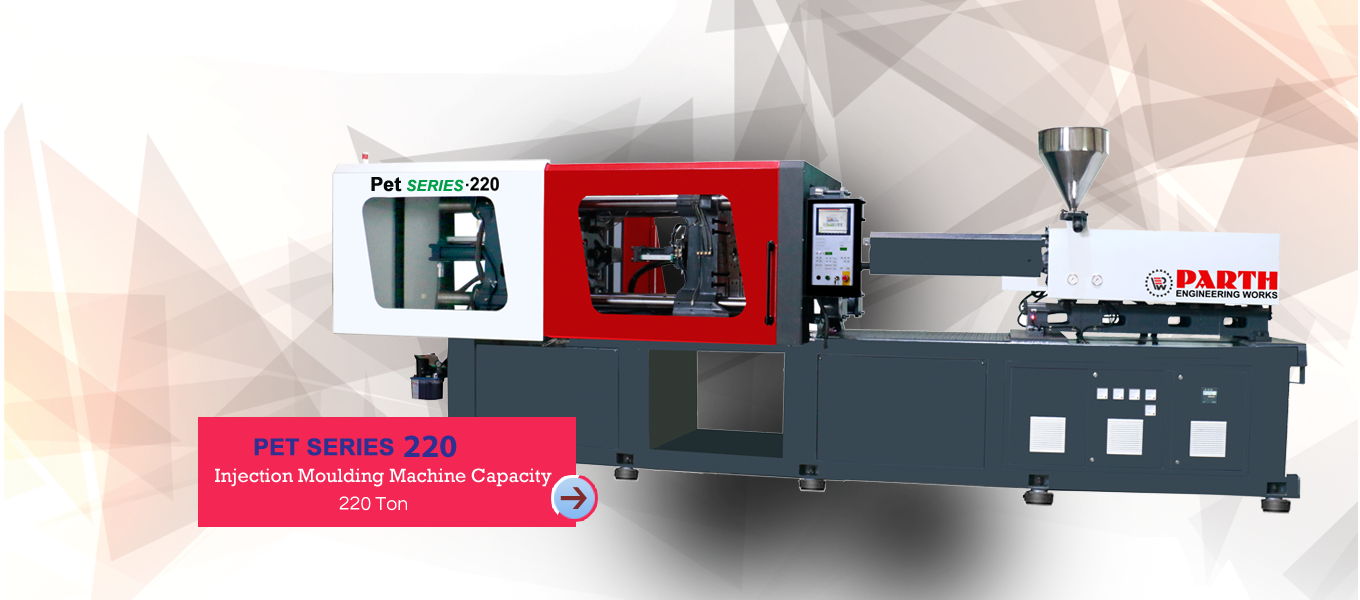

The PET series is a unique plastic processing machine with varied industrial application. Upto 220 tons of plastic can be moulded every day using this robust Injection Moulding Machinery. For superior safety we offer 5 speed control, pressure and velocity control, temperature control, high/low heat alarm and several other features. Our Plastic Injection Moulding Machine has specific applications in industries like Pharmaceutical, Food and Beverages, Chemicals and Fertilizers, Packaging and Household product manufacturing.

Being a highly reputed Injection Moulding Machine Manufacturers in Ahmedabad we strive to bring you machines with best design, quality, precision and durability. We are the name to trust for Injection Moulding Machine Repairing and servicing as well. When you collaborate with us, you enjoy world class products at a highly competitive price.

CLAMPING UNIT

• Robust Toggle Clamp Mechanism
• Automatic Mould Height & Tonnage Setting Adjustment through Proximity Switch
• Proportional Control with 5 Stage Closing & 5 Stage Opening Pressure & Velocity
• Adjustable 1 Stage Mould Safety Pressure & Velocity
• Position Based Ramping for Accurate Position Switching, Precise Velocity & Pressure Control
• Liner Position Transducer for Accurate Clamp Position Control
• Insert Moulding Program
• Automatic Lubrication
• T slot platens
• Skates for Moving Platen

TEMPERATURE CONTROL

• Heater failure and Thermocouple open detection
• Accurate PID temperature controller on screen
• Auto heat startup and shutdown
• High/Low temperature alarm

EJECTOR

• Programmable Ejector Forward Profile with Soft Eject
• Ejector Speed and pressure adjustable on screen
• Pulsating, ejector stroke up to 20 stroke
• Central Hydraulic Ejector & Multi Point Ejector Plate
• Intermediate Retract Set Point
• 2 Stage Air Ejector

INJECTION

• 5 stage injection velocity & 5 stage injection pressure profile
• 2 stage screw speed
• Digital setting of extruder RPM and digital readout of actual RPM
• Linear position transducer for accurate injection position control
• Injection decompression before / after refilling or both
• Twin cylinder Injection on guide rods
• Nozzle Advance and Retraction Programmable in 2 Stages
• Auto Parge Function For Cleaning the barral Function

CONTROLS

• 8” TFT color display with alpha numeric keypad
• Actual injection speed and pressure graph display
• 100 Mold data storage
• Graphical presentation of last 24 hours production
• Daily production data of last one year
• High / Low limit display for each adjustable parameter
• 100 set points change with time and date
• Over view display of machine function on screen with graphical
• Fast access of select menu by Soft keys
• Alarm visual and audible with date and time up to 1000no
• Printer interface with USP port
• Energy Indication on Operator Panel
• Single Phase Preventor
• I/O Diagnosis - Analog & Digital

HYDRAULICS

• Servo Motor and VDP Pump
• Valves placed near Actuators for rapid response
• Hydraulic valve on / off indication

AVAILABLE OPTIONS

• 4 Stage Air Ejector
• Up to 2 stage Hydraulic core puller
• PID Oil temperature control
• Heater with insulated
• Back pressure control (Plc Based)
• Open close electro proportional Based
• Water Manifolds
• Jam Bar (120 to 220 Ton)
