SUPER SERVO

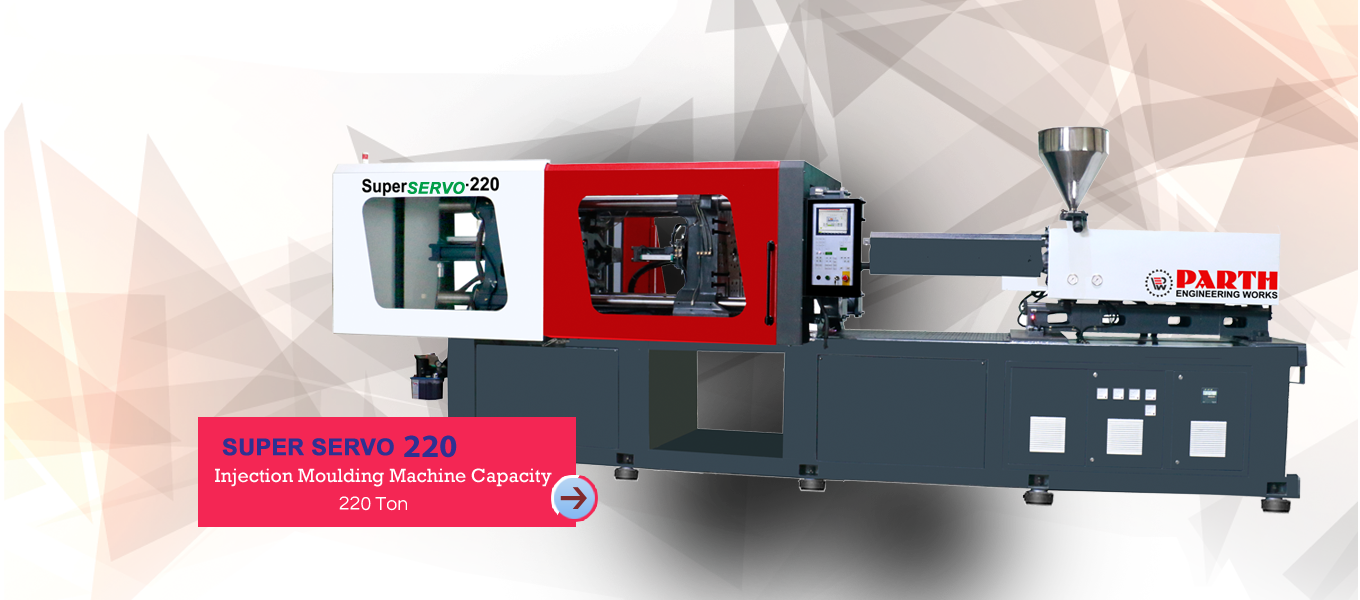

We bring you Super Servo Injection Moulding Machine, the most preferred plastic injection moulding machine in the market. With a capacity to inject 220 ton per day, this is the perfect combination of speed, precision and energy efficiency. As the top Injection Moulding Machines Manufacturers, we at Parth Engineering Works are dedicated to offer world class products to our domestic as well as international clients.

As the leading Injection Moulding Machine Manufacturers in Gujarat we have been immense industry knowledge. Our team of engineers understand market demands and design the most suitable injection moulding solutions. The Super Servo machine is powered by the robust Servo motor and powerful VDP pump. This Hydraulic Injection Moulding Machine comes with 5 stage opening and closing control for better safety. Being the preferred Exporter of Injection Moulding Machine we supply our machines to various industries including Automobile, Food and beverages, Pharmaceutical, Cosmetics, Chemical, Electrical and Electronics, PVC and so on.

As the trusted Injection Moulding Machine Manufacturers we are dedicated to bringing you the safest and most efficient machines in the market. We assure you top quality and round the clock support to manufacture to the best of your capacity.

CLAMPING UNIT

Robust Toggle Clamp Mechanism
Automatic Mould Height & Tonnage Setting Adjustment through Proximity Switch
Proportional Control with 5 Stage Closing & 5 Stage Opening Pressure & Velocity
Adjustable 1 Stage Mould Safety Pressure & Velocity
Position Based Ramping for Accurate Position Switching, Precise Velocity & Pressure Control
Liner Position Transducer for Accurate Clamp Position Control
Insert Moulding Program
Automatic Lubrication
T slot platens
Skates for Moving Platen

TEMPERATURE CONTROL

Heater failure and Thermocouple open detection
Accurate PID temperature controller on screen
Auto heat startup and shutdown
High/Low temperature alarm

EJECTOR

Programmable Ejector Forward Profile with Soft Eject
Ejector Speed and pressure adjustable on screen
Pulsating, ejector stroke up to 20 stroke
Central Hydraulic Ejector & Multi Point Ejector Plate
Intermediate Retract Set Point
2 Stage Air Ejector

INJECTION

5 stage injection velocity & 5 stage injection pressure profile
2 stage screw speed
Digital setting of extruder RPM and digital readout of actual RPM
Linear position transducer for accurate injection position control
Injection decompression before / after refilling or both
Twin cylinder Injection on guide rods
Nozzle Advance and Retraction Programmable in 2 Stages
Auto Parge Function For Cleaning the barral Function

CONTROLS

8” TFT color display with alpha numeric keypad
Actual injection speed and pressure graph display
100 Mold data storage
Graphical presentation of last 24 hours production
Daily production data of last one year
High / Low limit display for each adjustable parameter
100 set points change with time and date
Over view display of machine function on screen with graphical
Fast access of select menu by Soft keys
Alarm visual and audible with date and time up to 1000no
Printer interface with USP port
Energy Indication on Operator Panel
Single Phase Preventor
I/O Diagnosis - Analog & Digital

HYDRAULICS

Servo Motor and VDP Pump
Valves placed near Actuators for rapid response
Hydraulic valve on / off indication

AVAILABLE OPTIONS

4 Stage Air Ejector
Up to 2 stage Hydraulic core puller
PID Oil temperature control
Heater with insulated
Back pressure control (Plc Based)
Open close electro proportional Based
Water Manifolds
Jam Bar (120 to 220 Ton)

TECHNICAL SPECIFICATION

TECHNICAL SPECIFICATION	Model	Parth-60		Parth-90		Parth-120		Parth-150			Parth-180			Parth-220
TECHNICAL SPECIFICATION	Unit	A	B	A	B	A	B	A	B	C	A	B	C	A	B	C
INJECTION UNIT
Screw Diameter	MM	32	35	35	40	35	40	40	45	50	50	55	60	50	60	70
Injection Capacity Max. (GPPS)	GM	100	128	150	200	154	200	224	283	349	419	507	604	500	720	981
Injection Pressure Max.	BAR	1777	1486	1715	1320	2200	1700	2706	2138	1732	2117	1749	1470	2637	1831	1345
Injection Rate (GPPS )	GM/SEC	61	72	88	115	95	124	98	124	153	125	152	181	130	187	255
Injection Screw Strock	MM	150	150	180	180	180	180	200	200	200	240	240	240	280	280	280
Screw L/D Ratio		22	20	22	20	22	20	22	22	20	22	20	20	27	22	19
Screw Speed	RPM	340	340	400	335	350	350	300	300	250	250	250	250	175	175	175
No. Of Pyrometers ( Barrel + Nozzle )		3 + 1		3 + 1		3 + 1		4 + 1			4 + 1			4 + 1
Total Heat Capacity	KW	6		6		9		12			12			20.3
CLAMP UNIT
Clamp Force	TON	60		90		120		150			180			220
Clamp Strock	MM	300		330		400		450			510			550
Maximum Day Light	MM	620		700		830		960			1110			1250
Maximum Mould Height	MM	150		180		180		180			200			250
Maximum Mould Height	MM	320		370		480		510			600			700
Platen Size	MM	500 X 500		550 X 550		635 X 635		735 X 735			770 X 770			820 X 820
Distance Between Tie Rod	MM	310 X 310		360 X 360		425 X 425		460 X 460			510 X 510			570 X 570
Tie Rod Diameter	MM	60		70		75		85			95			105
Ejector Stroke	MM	90		90		125		125			150			160
Ejector Force	TON	2.8		3.5		4.3		4.3			5.5			6.5
GENERAL
Power Pack	KW	7.5		9.5		11		15			22			28.8
Oil Tank Capacity	LTR	200		250		250		300			400			400
Connected Load	KW	13.5		15.5		20		27			34			48.3
Machine Dimension ( L X W X H )	MTR	3.1 X 0.9 X 1.4		3.4 X 1 X 1.5		4 X 1.2 X 1.5		4.6 X 1.1 X 1.85			5.5 X 1.2 X 2			6.3 X 1.3 X 2.1
Machine Weight ( Approx )	KG	2300		3200		4600		5500			6500			9000
